  • Incremental Encoder

High specification, Low cost and wide variety of applicable segment

We have a lot of choice on size of encoder body and resolution and output mode.

Product list

Outer diameter

φ7mm

Type Image Feature Size Power Supply Pulse Instructions
7S

Miniature type
High Resolution		 φ7mm DC 4.5～5.5V 100～400

Outer diameter

φ18mm

Type Image Feature Size Power Supply Pulse Instructions
18M

Miniature Modular type
High Resolusion		 φ18mm DC4.5～13.2V（2MC）
/ DC4.5～5.5V（2MD）		 200～1600

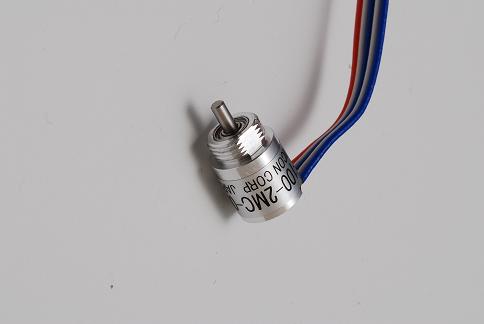

18S

Miniature Shaft type
High Resolution		 φ18mm DC4.5～13.2V（2MC）
/ DC4.5～5.5V（2MD）		 100～1600
18SA

Shaft type
Magnetic
(φ18)
 φ18mm DC 4.5V ～ 5.5V
(Ripple 100mV(P-P)
 ABI 1 ～ 10000 UVW 1 ～ 32 pole-pairs
OME-N

Miniature Shaft type
Analog output
With Connector		 φ18mm - 100～360
OME-T

Miniature Shaft type
Analog output		 φ18mm - 100～360

Outer diameter

φ28mm

Type Image Feature Size Power Supply Pulse Instructions
28S

Small Shaft type
High Resolution		 φ28mm DC 4.5 to 26.4V /
DC 4.5 to 13.2V /
DC 4.5 to 5.5V		 512～12800
OEZ

Small Shaft type
High speed response frequency 150Hz		 φ28mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC)		 36～1500

Outer diameter

φ30mm

Type Image Feature Size Power Supply Pulse Instructions
OSS

Small Shaft type
Low Starting Torque		 φ30mm DC4.5~13.2V(LD,LC)
/DC4.5~5.5V(DC+5V)
/DC10.8~13.2V(DC+12V)
/DC21.6~26.4V(DC+24V)		 60~600

Outer diameter

φ35mm

Type Image Feature Size Power Supply Pulse Instructions
SBY

Small Built-in type
General Application model		 φ35mm DC4.75～5.25V 100~3000

Outer diameter

φ38mm

Type Image Feature Size Power Supply Pulse Instructions
38M

Small Modular type
Easy to assemble		 φ38mm DC3.35V～13.2V(2V,2MV)
/ DC3.35V～34.5V(2C,2MC)
/ DC3.35V～5.25V(2D,2MD)		 200～4096
38S

Small Shaft type
Flagship model
Wide range of resolution		 φ38mm DC4.5～30V(2MC,2MT)
/ DC4.5～13.2V(2MD)		 100～4096
38SG

Small Shaft type
Short delivery		 φ38mm DC3.35V～13.2V(2V,2MV)
/ DC3.35V～34.5V(2C,2MC)
/ DC3.35V～5.25V(2D,2MD)		 100～2048
38H

Small Hollow Shaft type
Wide range of resolution		 φ38mm DC4.5～30V(2MC,2MT)
/ DC4.5～13.2V(2MD)		 100～4096
38HG

Small Hollow Shaft type
Short delivery		 φ38mm DC3.35V～13.2V(2V,2MV)
/ DC3.35V～34.5V(2C,2MC)
/ DC3.35V～5.25V(2D,2MD)		 100～2048

Outer diameter

φ39mm

Type Image Feature Size Power Supply Pulse Instructions
OVF

Small Shaft type
Heavy Duty
(IP65)		 φ39mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.25V,C-MOS DC4.5～5.5V(2MD)		 20～3600
HEF

Small Hollow Shaft type
Heavy Duty
(IP65)		 φ39mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.25V(2MD)		 20～3600

Outer diameter

φ50mm

Type Image Feature Size Power Supply Pulse Instructions
NOC-S

Standard Shaft type
Wide range of Resolution		 φ50mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.5V(2MD)
/ DC4.75～30V(2MWT)		 10～5000
NOC-SP

Standard Shaft type
Wide range of Resolution
(IP65)		 φ50mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.5V(2MD)
/ DC4.75～30V(2MWT)		 10～10000
50S/NOC3

Standard Shaft type
(IP65)		 φ50mm DC4.5～30V(2MC,2MT)
/ DC4.5～5.5V(2MD)		 360～5000
50S2

Standard Shaft type
High resolution
(IP65)		 φ50mm DC 4.5 to 30V(2MC,2MT)/DC 4.5 to 5.5V(2MD) 1024 ~ 20000
NOC-H

Standard Hollow Shaft type
Wide range of Resolution		 φ50mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.5V(2MD)
/ DC4.75～30V(2MWT)		 10～5000
NOC-HP

Standard Hollow Shaft type
Wide range of Resolution
(IP65)		 φ50mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.5V(2MD)
/ DC4.75～30V(2MWT)		 10～10000

Outer diameter

φ58mm

Type Image Feature Size Power Supply Pulse Instructions
OEK

Shaft type
With Flange		 φ58mm DC4.5～13.2V(1,2,2M,1C,2C,2MC)
/ DC10.8～26.4V(1HC,2HC,2MHC)		 50～360

Outer diameter

φ68mm

Type Image Feature Size Power Supply Pulse Instructions
OPN

Shaft type
With Flange		 φ68mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC)		 20～5000
NE

Shaft type
Super Heavy Duty		 φ68mm DC4.75～5.25V 20~5000

Outer diameter

φ100mm

Type Image Feature Size Power Supply Pulse Instructions
SBH

Built-in type
Large Shaft model
High resolution		 φ100mm DC+5V±10%(2M,2C・2MC)
/ DC10.8～13.2V(2T・2MT)
/ DC4.75～5.25V(2D,2MD)
/ DC+12V±10%(2MD)
/ DC+5V±10%(5MD)		 512～10000

Other encoder products

Absolute Encoder
To achieve high resolution, strengthening the allowable load to shaft, and has realized the high IP. Featuring optical engine sofisticated and accurate.
Manual Encoder
(Pulse Generator)
We provide economical product with a prastic box type.Comfortable size for hand. Our technology will support by the operating accuracy of microns.
