Product list

Type Image Feature Size Power Supply Pulse/Resolution Instructions

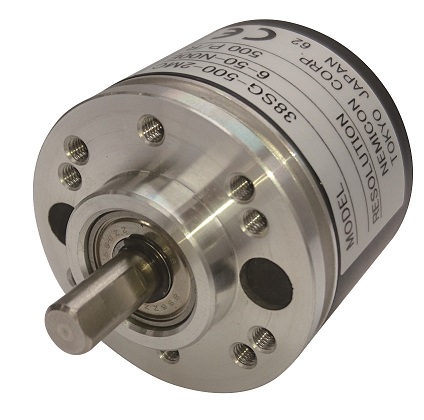

38S

Small Shaft type
Flagship model
Wide range of resolution		 φ38mm DC4.5～30V(2MC,2MT)
/ DC4.5～13.2V(2MD)		 100～4096

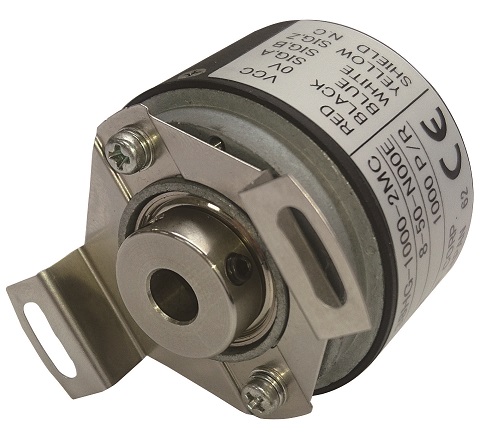

38H

Small Hollow Shaft type
Wide range of resolution		 φ38mm DC4.5～30V(2MC,2MT)
/ DC4.5～13.2V(2MD)		 100～4096
OVF

Small Shaft type
Heavy Duty
(IP65)		 φ39mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.25V,C-MOS DC4.5～5.5V(2MD)		 20～3600
HEF

Small Hollow Shaft type
Heavy Duty
(IP65)		 φ39mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.25V(2MD)		 20～3600
NOC-H

Standard Hollow Shaft type
Wide range of Resolution		 φ50mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.5V(2MD)
/ DC4.75～30V(2MWT)		 10～5000
NOC-HP

Standard Hollow Shaft type
Wide range of Resolution
(IP65)		 φ50mm DC4.5～13.2V(2M,2MC)
/ DC10.8～26.4V(2MHC,2MHCP,2MHT)
/ DC4.75～5.5V(2MD)
/ DC4.75～30V(2MWT)		 10～10000
SBH

Built-in type
Large Shaft model
High resolution		 φ100mm DC+5V±10%(2M,2C・2MC)
/ DC10.8～13.2V(2T・2MT)
/ DC4.75～5.25V(2D,2MD)
/ DC+12V±10%(2MD)
/ DC+5V±10%(5MD)		 512～10000
AHS2

Hollow Shaft type
Single-turn
Parallel output		 φ38mm L:DC4.5～13.2V
H:DC10.8～26.4V		 6,8
AEW2

Shaft type
Single-turn
Parallel output		 φ38mm L:DC4.5～13.2V
H:DC10.8～26.4V		 6,8

Other encoder products

Incremental Encoder
From ultra-small to large, we have prepared the easy rich output form and resolution select, and we have been active under a wide range, all-round environment.
Absolute Encoder
To achieve high resolution, strengthening the allowable load to shaft, and has realized the high IP. Featuring optical engine sofisticated and accurate.
Manual Encoder
(Pulse Generator)
We provide economical product with a prastic box type.Comfortable size for hand. Our technology will support by the operating accuracy of microns.
